Trajectory Optimization - Lecture 2

using Optim
using LinearAlgebra
using SparseArrays
using CairoMakie
using Piccolo

# let's define a shorthand for kron
const ⊗ = kron

kron (generic function with 61 methods)

Getting started

Review

Gradient descent
Newton's method and KKT conditions
Regularization
Newton approximations
Line search

Goals

Introduce trajectory optimization
Solve the LQR problem three ways
Describe nonlinear trajectory optimization

I. Trajectory optimization

The solution is a definite trajectory, not a feedback policy.

\[\begin{align} \min_{x_{1:N}, u_{1:N}} &\quad J(x_{1:N}, u_{1:N}) = \sum_{n=1}^N \ell_n(x_n, u_n) + \ell_N(x_N, u_N) \\ \text{s.t.} &\quad x_{n+1} = f(x_n, u_n, n) \end{align}\]

Named Trajectories

Terminology

Snapshot matrix, $Z = \begin{bmatrix} | & | & & | \\ z_1 & z_2 & & z_T \\ | & | & & | \end{bmatrix}$
Knot point, $z_1 = \begin{bmatrix} x_1 \\ u_1 \end{bmatrix}$

N = 10 # Number of knot points
traj = rand(NamedTrajectory, N)

T = 10, (x = 1:3, u = 4:5, → Δt = 6:6)

traj.x

3×10 view(reshape(view(::Vector{Float64}, :), 6, 10), 1:3, :) with eltype Float64:
  0.457533  -2.35182    0.660083  -0.856307   …  -1.35003  0.941149  1.75569
  1.69218    0.409696   0.766585   0.0217461     -1.2624   1.09609   0.555132
 -0.704936  -0.0920414  0.351501   0.58511        1.05494  0.186944  0.186521

traj.u

2×10 view(reshape(view(::Vector{Float64}, :), 6, 10), 4:5, :) with eltype Float64:
 1.24957  1.44903   -0.554347  -0.66381  …  0.740205  -0.492164  -0.433807
 0.38033  0.291519  -0.638417  -2.01442     1.78874   -0.143572   0.263034

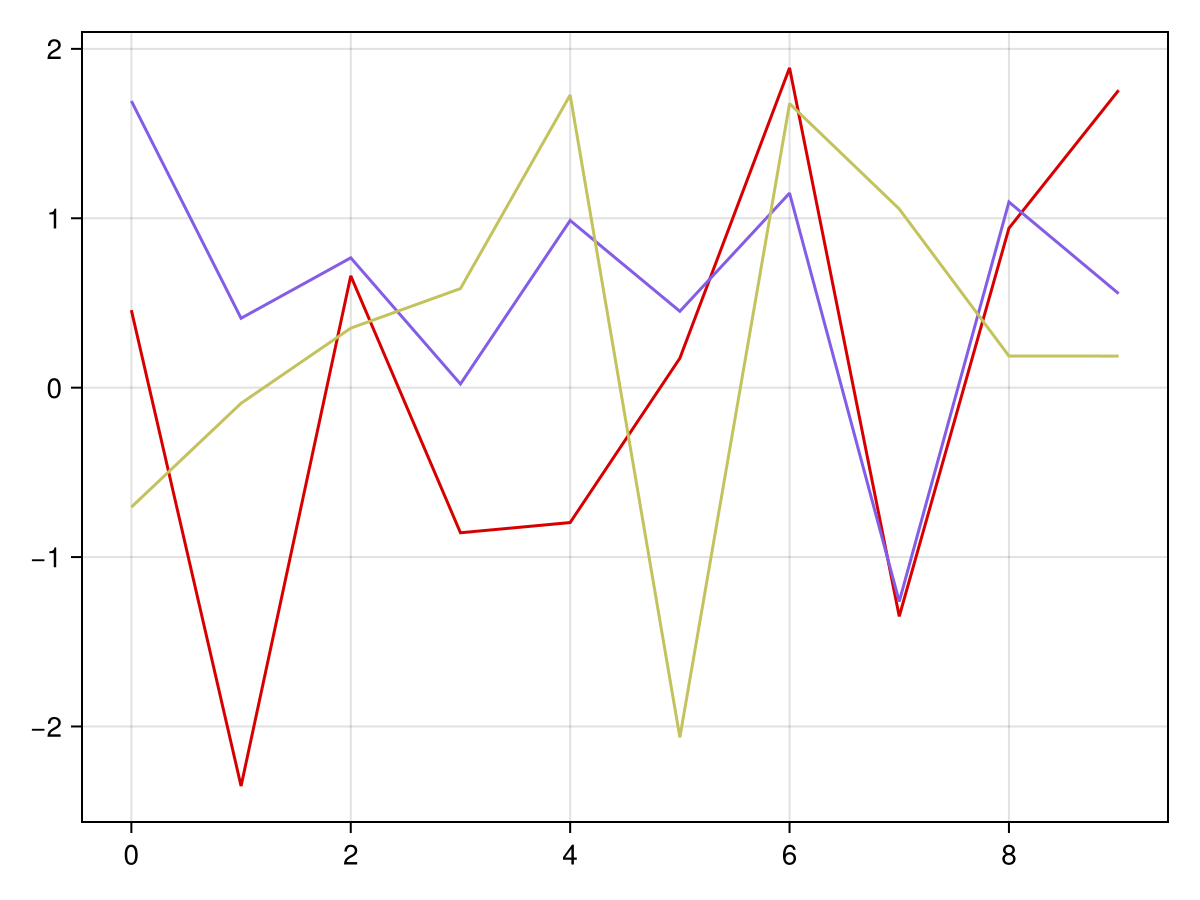

plot(traj, :x)

II. Linear Quadratic Regulator

LQR is the "simple harmonic oscillator" of control

\[\begin{align} \min_{x_{1:N}, u_{1:N{-}1}} &\quad J = \sum_{n=1}^{N-1} \tfrac{1}{2} x_n^T Q_n x_n + \tfrac{1}{2} u_n^T R_n u_n + \tfrac{1}{2} x_N^T Q_N x_N \\ \text{s.t.} &\quad x_{n+1} = A_n x_n + B_n u_n \\ &\quad Q_n \succeq 0,\, R_n \succ 0 \end{align}\]

Quick check: Why does $R$ need to be positive definite?

Linear systems

Zero-order hold

Zero-order hold can be used to convert continuous, linear, time-invariant (LTI) systems to discrete LTI systems.

\[\begin{align} \dot{x}(t) &= A x(t) + B u(t) \\ \overset{h}{\longrightarrow} x(t+h) &= A_h x(t) + B_h u(t) \\ &= \left( \sum_{n\ge0} \tfrac{1}{n!} A^n h^n \right) x + \left( \sum_{n\ge1} \tfrac{1}{n!} A^{n-1} B h^n \right) u \\ &\approx (I + h A) x + h B u \end{align}\]

Matrix exponential trick:

\[\exp\left(\begin{bmatrix} A & B \\ 0 & 0 \end{bmatrix} h \right) = \begin{bmatrix} A_h & B_h \\ 0 & I \end{bmatrix}\]

# Define continuous LTI system matrices
A = [0.0 1.0; -1.0 -0.1]
B = [0.0; 1.0]
h = 0.1  # Time step

function continuous_to_discrete(A, B, h)
    # Construct augmented matrix for matrix exponential
    augmented_matrix = [
        A B;
        zeros(size(B, 2), size(A, 1)) zeros(size(B, 2), size(B, 2))
    ]

    # Compute matrix exponential
    exp_matrix = exp(augmented_matrix * h)

    # Extract discrete LTI system matrices
    A_h = exp_matrix[1:size(A, 1), 1:size(A, 2)]
    B_h = exp_matrix[1:size(A, 1), size(A, 2)+1:end]

    return A_h, B_h
end

# Extract discrete LTI system matrices
A_h, B_h = continuous_to_discrete(A, B, h);

([0.9950207737420776 0.09933590957864684; -0.09933590957864684 0.9850871827842128], [0.004979226257922404; 0.09933590957864684;;])

A_h

2×2 Matrix{Float64}:
  0.995021   0.0993359
 -0.0993359  0.985087

I + A * h

2×2 Matrix{Float64}:
  1.0  0.1
 -0.1  0.99

B_h

2×1 Matrix{Float64}:
 0.004979226257922404
 0.09933590957864684

B * h

2-element Vector{Float64}:
 0.0
 0.1

Double Integrator

Double integrator (Newton's second law, $F = ma$)

\[m \frac{d}{dt} \begin{bmatrix} q \\ \dot{q} \end{bmatrix} = \begin{bmatrix} 0 & m \\ 0 & 0 \end{bmatrix} \begin{bmatrix} q \\ \dot{q} \end{bmatrix} + \begin{bmatrix} 0 \\ u \end{bmatrix}\]

function double_integrator(m)
    A_c = [0.0 1.0; 0.0 0.0]
    B_c = [0.0; 1.0 / m]
    return A_c, B_c
end

# simulate a discrete LTI system
function simulate_dlti(u::AbstractMatrix, A, B, x1)
    N = size(u, 2) + 1
    x = zeros(size(A, 2), N)
    x[:, 1] = x1
    for k in 1:N-1
        x[:, k + 1] = A * x[:, k] + B * u[:, k]
    end
    return x
end

function simulate_dlti(u::AbstractVector, A, B, x1)
    simulate_dlti(reshape(u, 1, length(u)), A, B, x1)
end

simulate_dlti (generic function with 2 methods)

m = 2.0 # Mass
A_c , B_c = double_integrator(m)
h = 0.05  # Time step
A, B = continuous_to_discrete(A_c, B_c, h);

([1.0 0.05; 0.0 1.0], [0.0006250000000000001; 0.025;;])

A ≈ I + A_c * h

true

B ≈ B_c * h + [h^2 / 2m; 0]

true

Indirect optimal control: Naive way

Indirect optimal control is also known as "single shooting"
The naive way is to perform gradient descent without any problem structure.

\[\min_{u_{1:N{-}1}} \quad J(u_{1:N{-}1}) = \sum_{n=1}^{N-1} \ell_n(x_n(u_{1:n{-}1}), u_n) + \ell_N(x_N(u_{1:N{-}1}), u_N)\]

We will start with the double integrator and solve the LQR problem,

\[\begin{align} \min_{u_{1:N{-}1}} &\quad J(u_{1:{N{-}1}}) = \sum_{n=1}^{N-1} \tfrac{1}{2} x_n(u_{1:n{-}1})^T Q_n x_n(u_{1:n{-}1}) + \tfrac{1}{2} u_n^T R_n u_n + \tfrac{1}{2} x_N(u_{1:N{-}1})^T Q_N x_N(u_{1:N{-}1}) \\ \text{s.t.} &\quad Q_n \succeq 0,\, R_n \succ 0 \end{align}\]

m = 0.1 # Mass
A_c, B_c = double_integrator(m)
h = 0.1  # Time step
A, B = continuous_to_discrete(A_c, B_c, h)
x1 = [1.0; 2.0]  # Initial state

Q = 1e-4I
R = 1e-1I
QN = 1e2I

function J(
    x::AbstractMatrix,
    u::AbstractVecOrMat;
    Q = 1e-2I,
    R = 1e-4I,
    QN = 1e2I
)
    u = isa(u, AbstractMatrix) ? u : reshape(u, 1, length(u))

    N = size(u, 2) + 1
    J = 0.0
    for n in 1:N-1
        xₙ = x[:, n]
        uₙ = u[:, n]
        J += 1/2 * (xₙ' * Q * xₙ + uₙ' * R * uₙ)
    end
    J += 1/2 * (x[:, N]' * QN * x[:, N])
    return J
end

function J(u::AbstractVecOrMat; A=A, B=B, x1=x1, kwargs...)
    x = simulate_dlti(u, A, B, x1)
    return J(x, u; kwargs...)
end

J (generic function with 2 methods)

Gradient descent

N = 40
u0 = randn(N - 1)
J(u0; A=A, B=B, x1=x1, Q=Q, R=R, QN=QN)

1097.8158832101492

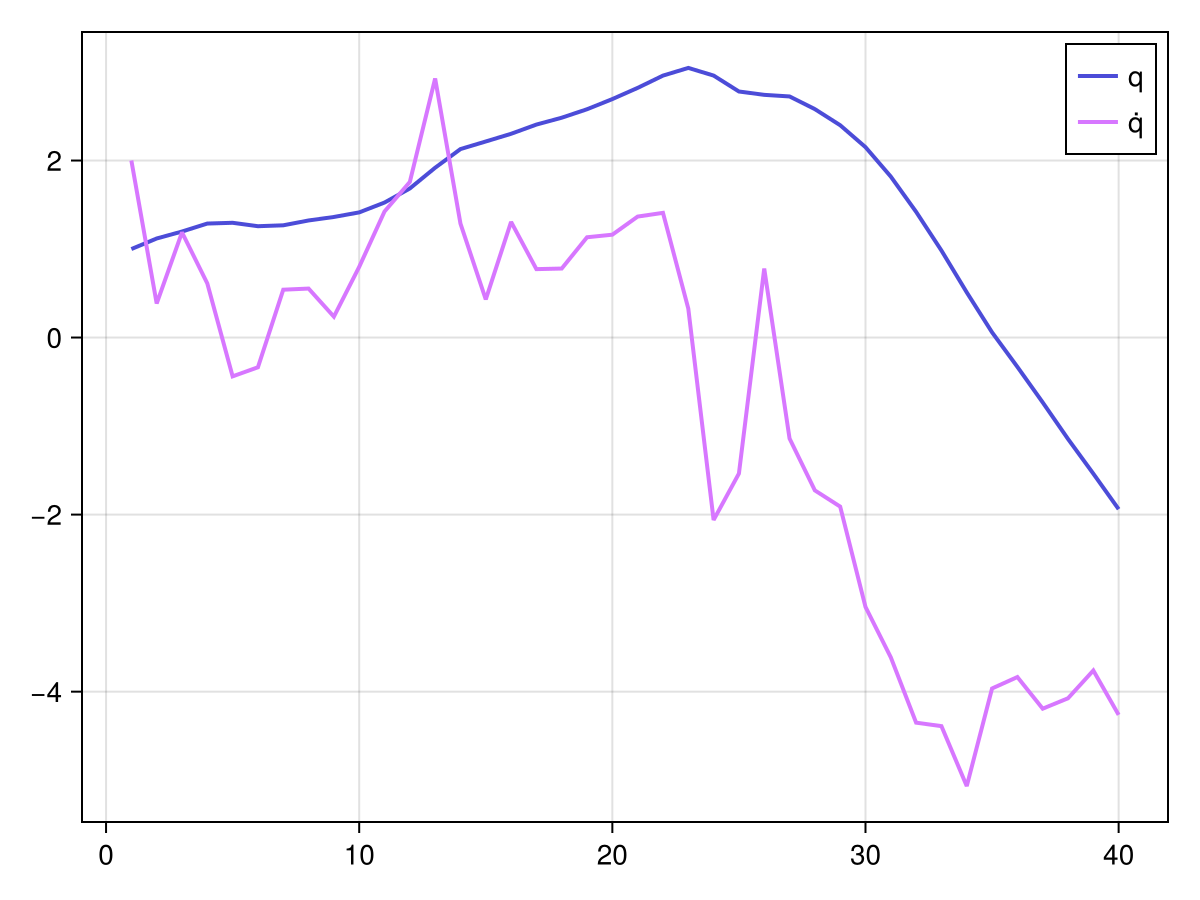

fig, ax = series(simulate_dlti(u0, A, B, x1), labels=["q", "q̇"])
axislegend(ax)
fig

res = optimize(u -> J(u; A=A, B=B, x1=x1, Q=Q, R=R, QN=QN), u0, GradientDescent(),
               Optim.Options(iterations=50))

 * Status: failure (reached maximum number of iterations)

 * Candidate solution
    Final objective value:     1.641849e+00

 * Found with
    Algorithm:     Gradient Descent

 * Convergence measures
    |x - x'|               = 2.27e-04 ≰ 0.0e+00
    |x - x'|/|x'|          = 9.14e-05 ≰ 0.0e+00
    |f(x) - f(x')|         = 1.47e-04 ≰ 0.0e+00
    |f(x) - f(x')|/|f(x')| = 8.95e-05 ≰ 0.0e+00
    |g(x)|                 = 7.91e-01 ≰ 1.0e-08

 * Work counters
    Seconds run:   0  (vs limit Inf)
    Iterations:    50
    f(x) calls:    151
    ∇f(x) calls:   151

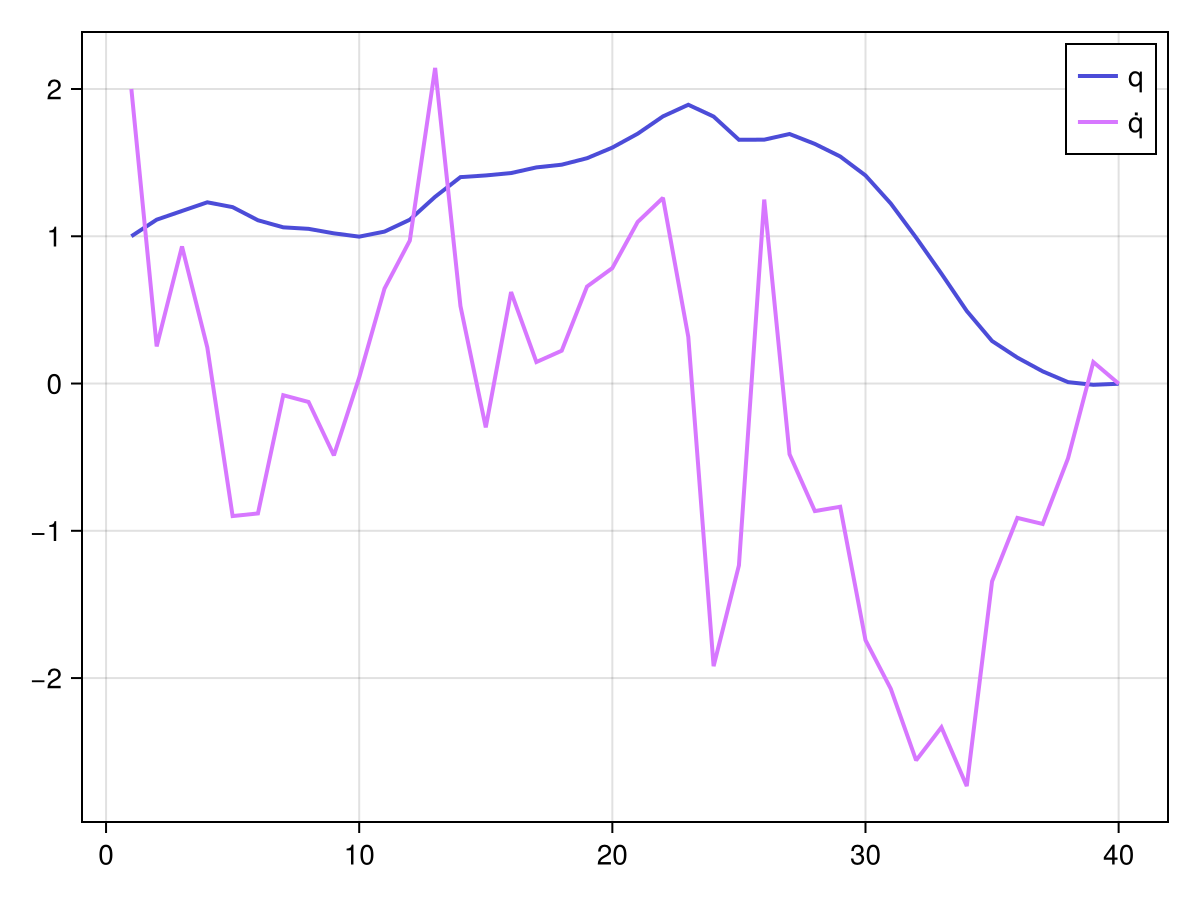

fig, ax = series(simulate_dlti(res.minimizer, A, B, x1), labels=["q", "q̇"])
axislegend(ax)
fig

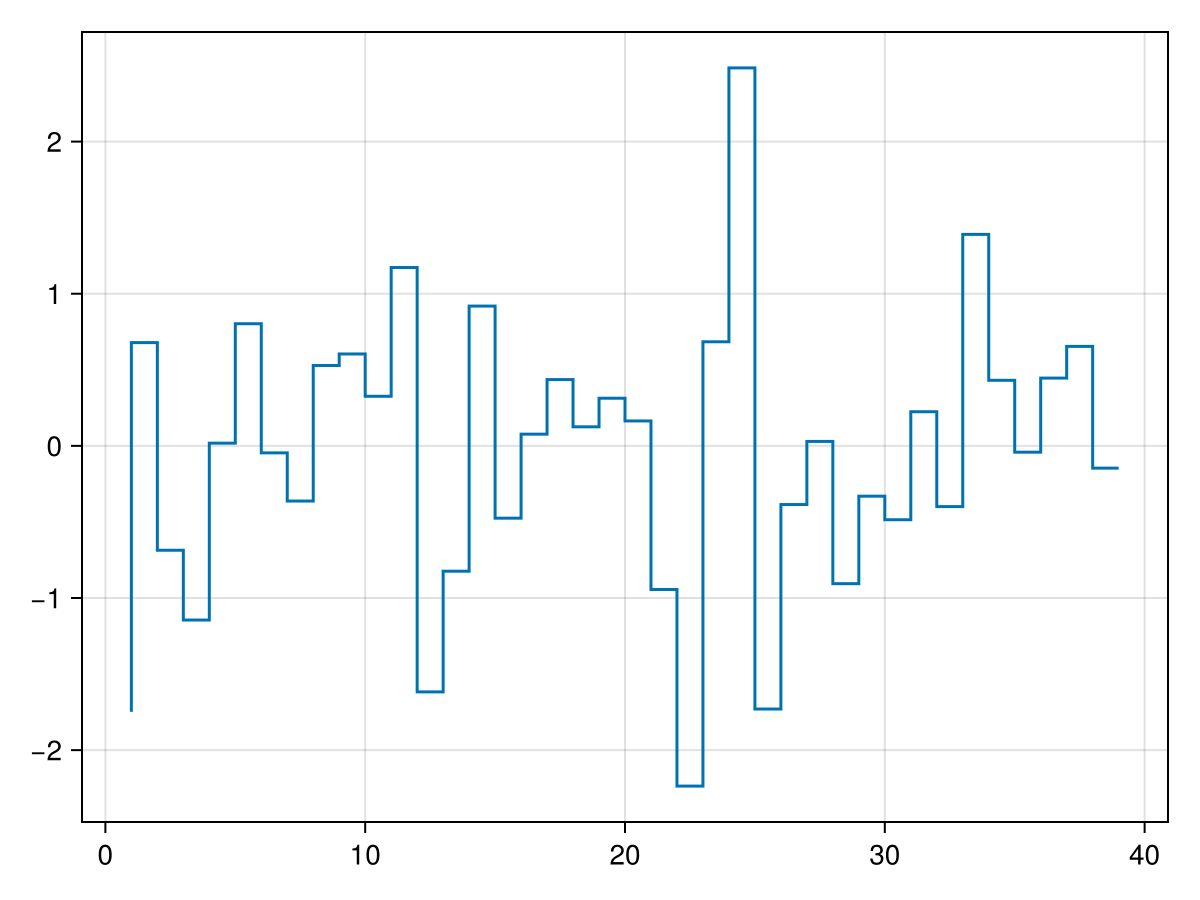

stairs(res.minimizer)

Newton's method

res_newton = optimize(u -> J(u; A=A, B=B, x1=x1, Q=Q, R=R, QN=QN), u0, Newton(),
                     Optim.Options(iterations=20))

 * Status: success

 * Candidate solution
    Final objective value:     3.418396e-02

 * Found with
    Algorithm:     Newton's Method

 * Convergence measures
    |x - x'|               = 1.45e-03 ≰ 0.0e+00
    |x - x'|/|x'|          = 5.44e-03 ≰ 0.0e+00
    |f(x) - f(x')|         = 3.02e-07 ≰ 0.0e+00
    |f(x) - f(x')|/|f(x')| = 8.83e-06 ≰ 0.0e+00
    |g(x)|                 = 6.88e-12 ≤ 1.0e-08

 * Work counters
    Seconds run:   0  (vs limit Inf)
    Iterations:    2
    f(x) calls:    7
    ∇f(x) calls:   7
    ∇²f(x) calls:  2

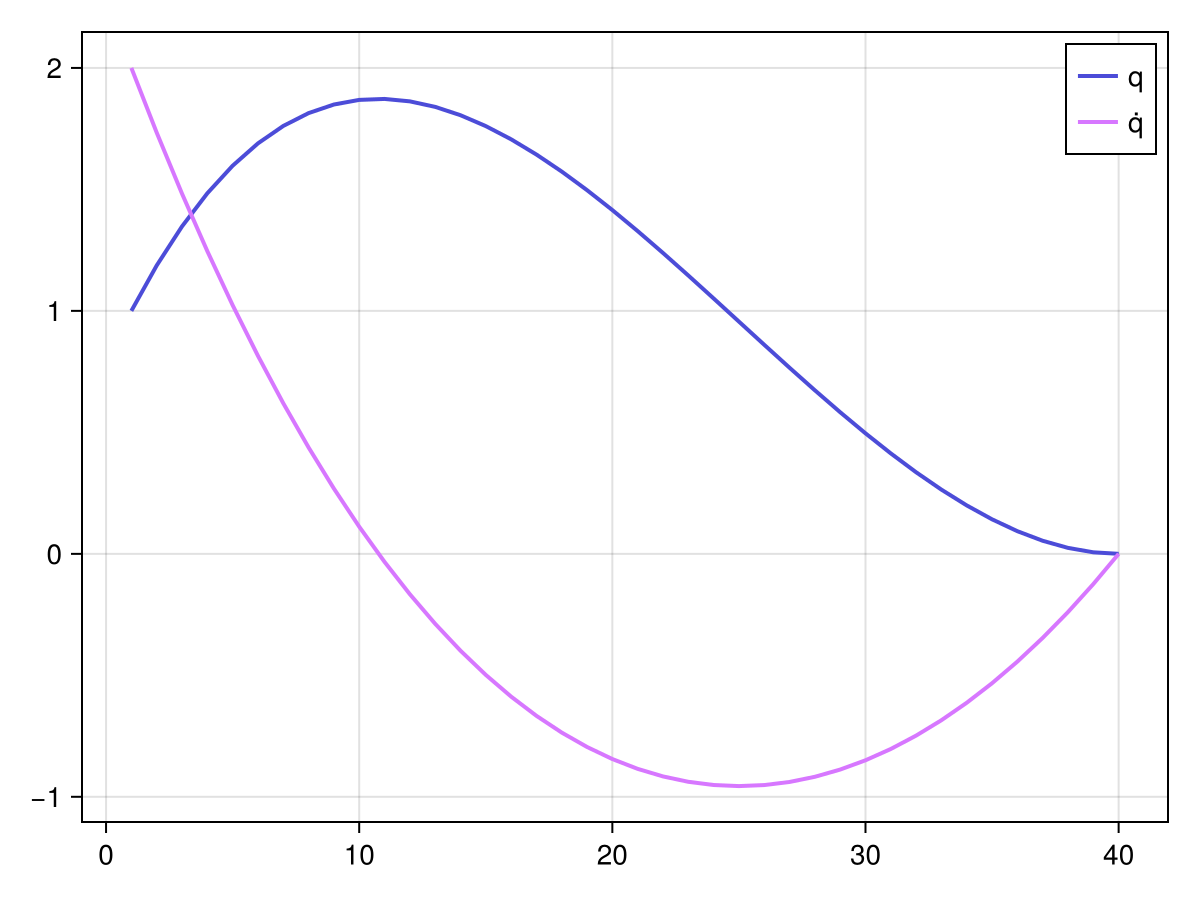

fig, ax = series(simulate_dlti(res_newton.minimizer, A, B, x1), labels=["q", "q̇"])
axislegend(ax)
fig

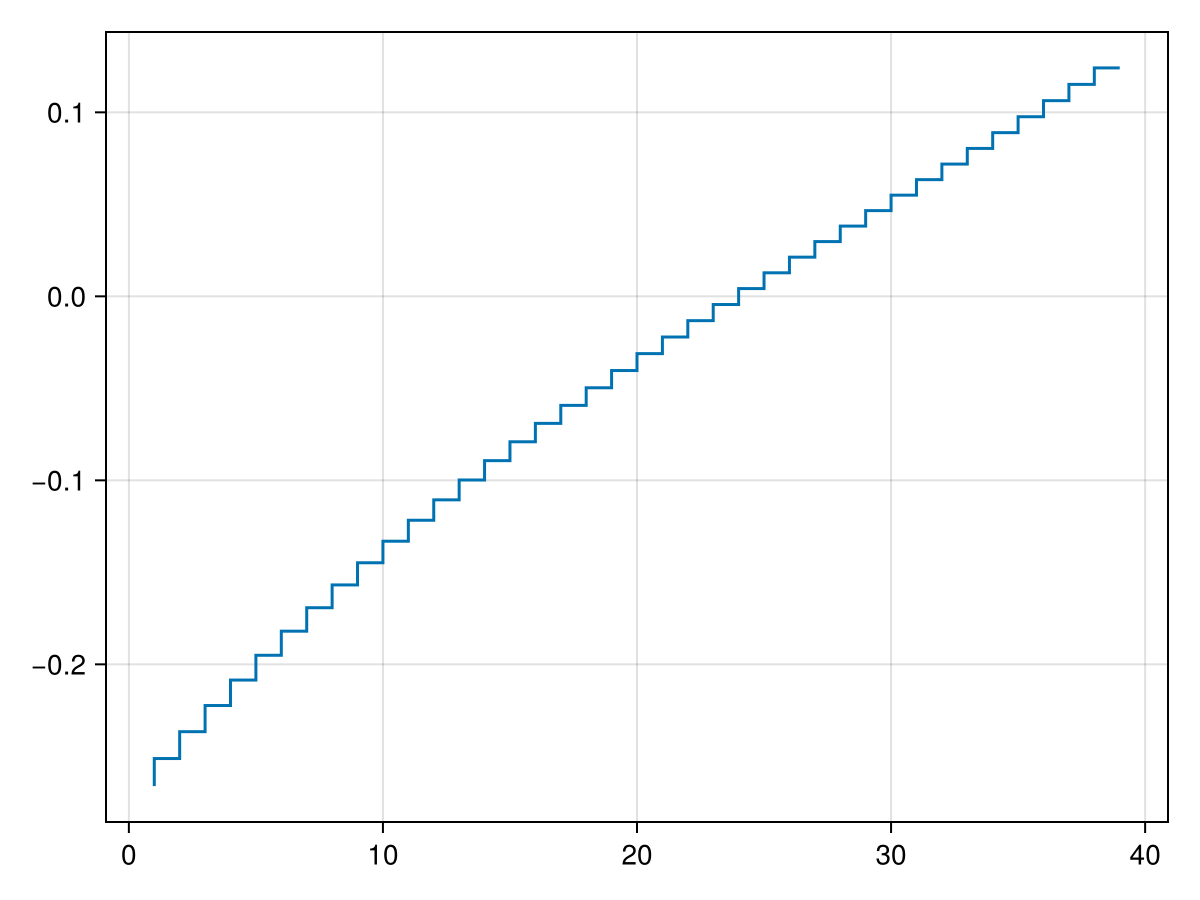

stairs(res_newton.minimizer)

Indirect optimal control: Pontryagin

Tagline

"optimize, then discretize"

Ideas

We can do this in a smart way by using the temporal structure of the problem.

\[\begin{align} \min_{x_{1:N}, u_{1:{N{-}1}}} & \quad J(x_{1:N}, u_{1:{N{-}1}}) = \sum_{n=1}^{N-1} \tfrac{1}{2} x_n^T Q_n x_n + \tfrac{1}{2} u_n^T R_n u_n + \tfrac{1}{2} x_N^T Q_N x_N \\ \text{s.t.} &\quad x_{n+1} = A_n x_n + B_n u_n \\ &\quad Q_n \succeq 0,\, R_n \succ 0 \end{align}\]

Lagrangian:

\[L(x_{1:N}, u_{1:{N{-}1}}, \lambda_{2:N}) = \sum_{n=1}^{N-1} \tfrac{1}{2} x_n^T Q_n x_n + \tfrac{1}{2} u_n^T R_n u_n + \lambda_{n+1}^T(A_n x_n + B_n u_n - x_{n+1}) + \tfrac{1}{2} x_N^T Q_N x_N\]

KKT conditions:

\[\begin{align} \frac{\partial L}{\partial \lambda_n} &= (A_n x_n + B_n u_n - x_{n+1})^T \overset{!}{=} 0 \\ \frac{\partial L}{\partial x_n} &= x_n^T Q_n + \lambda_{n+1}^T A_n - \lambda_{n}^T \overset{!}{=} 0 \\ \frac{\partial L}{\partial x_N} &= x_N^T Q_N - \lambda_{N}^T \overset{!}{=} 0 \\ \frac{\partial L}{\partial u_n} &= u_n^T R_n + \lambda_{n+1}^T B_n \overset{!}{=} 0 \end{align}\]

Rewrite:

\[\begin{align} x_{n+1} &= A_n x_n + B_n u_n \\ \lambda_{n} &= A_n^T \lambda_{n+1} + Q_n x_n \\ \lambda_N &= Q_N x_N \\ u_n &= -R_n^{-1} B_n^T \lambda_{n+1} \end{align}\]

There is a forward equation and a backward equation. This computation is backpropagation through time.
We inherit many of the same problems, e.g., vanishing / exploding gradients.

N = 60
m = 1.0 # Mass
A_c, B_c = double_integrator(m)
h = 0.1  # Time step
A, B = continuous_to_discrete(A_c, B_c, h)
x1 = [1.0; 1.0]  # Initial state

Q = 1e-4I
R = 1e-2I
QN = 1e1I

# Initial guess
u = zeros(1, N - 1)
Δu = ones(1, N - 1)
x = simulate_dlti(u, A, B, x1)
λ = zeros(size(x, 1), N)

# Line search parameters
α = 1.0 # Step size
b = 1e-2 # Tolerance
α_min = 1e-16 # Minimum step size
loop = 0
max_iterations = 20

# Verbose
verbose = false

while maximum(abs, Δu) > 1e-2 && α > α_min && loop < max_iterations
    verbose ? println("Iteration: ", loop) : nothing

    # Backward pass to compute λ and Δu
    λ[:, N] .= QN * x[:, N]
    for n = N-1:-1:1
        Δu[:, n] .= - R\B' * λ[:, n+1] - u[:, n]
        λ[:, n] .= Q * x[:, n] + A' * λ[:, n+1]
    end

    # Forward pass (with line search) to compute x
    global α = 1.0
    b = 1e-2 # Tolerance
    unew = u + α .* Δu
    xnew = simulate_dlti(unew, A, B, x1)

    while J(xnew, unew) > J(x, u) - b * α * norm(Δu)^2
        α = 0.5 * α
        unew = u + α .* Δu
        xnew = simulate_dlti(unew, A, B, x1)

        if verbose && α < α_min
            println("\tLine search failed to find a suitable step size")
            break
        end
    end

    u .= unew
    x .= xnew #added this dot so that global x is modified (https://discourse.julialang.org/t/local-and-global-variables-with-the-same-name-error-undefvarerror-x-not-defined/53951)
    verbose ? println("\tα = ", α) : nothing

    global loop = loop + 1
end

┌ Warning: Assignment to `b` in soft scope is ambiguous because a global variable by the same name exists: `b` will be treated as a new local. Disambiguate by using `local b` to suppress this warning or `global b` to assign to the existing global variable.
└ @ 7_trajectory_optimization.md:358

series(simulate_dlti(u, A, B, x1))

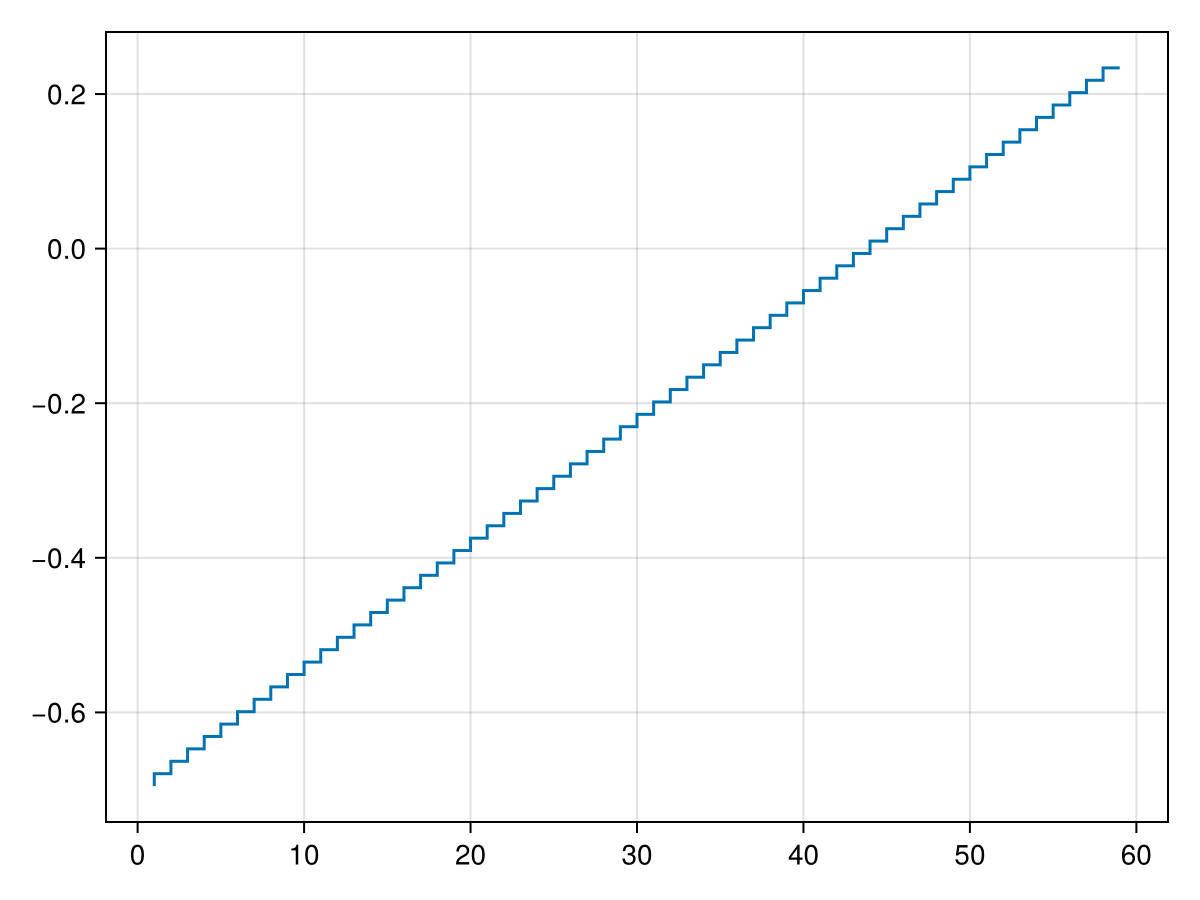

stairs(u[1, :])

Exercise: Neural ODEs

Check out this SciML note. Can we connect what we learned about Pontryagin to this work?

Direct optimal control

Tagline

"discretize, then optimize"

Ideas

Package the optimization variables into a trajectory
Set up a quadratic program defined over the trajectory
Observe the presence of sparsity

\[\begin{align} \min_{x_{1:N}, u_{1:{N{-}1}}} &\quad J(x_{1:N}, u_{1:{N{-}1}}) = \sum_{n=1}^{N-1} \tfrac{1}{2} x_n^T Q_n x_n + \tfrac{1}{2} u_n^T R_n u_n + \tfrac{1}{2} x_N^T Q_N x_N \\ \text{s.t.} &\quad x_{n+1} = A_n x_n + B_n u_n \\ &\quad Q_n \succeq 0,\, R_n \succ 0 \end{align}\]

m = 0.1 # Mass
A_c, B_c = double_integrator(m)
h = 0.1  # Time step
A, B = sparse.(continuous_to_discrete(A_c, B_c, h))
x1 = [1.0; 1.0]  # Initial state

N = 100
x_dim = size(A, 2)
u_dim = size(B, 2)

Q = sparse(1e-4I(x_dim))
R = sparse(1e-2I(u_dim))
QN = sparse(1e2I(x_dim))

2×2 SparseArrays.SparseMatrixCSC{Float64, Int64} with 2 stored entries:
 100.0     ⋅
    ⋅   100.0

Define $\begin{align} Z &= \begin{bmatrix} x_1 & x_2 & \cdots & x_N \\ u_1 & u_2 & \cdots & u_N \end{bmatrix} \\ \Rightarrow \vec{Z} &= \begin{bmatrix} x_1 \\ u_1 \\ x_2 \\ u_2 \\ \vdots \\ x_N \\ u_N \end{bmatrix} \end{align}$

and drop the first state (known) and last control (not used), $z = \vec{Z}[\text{length}(x_1){:}\text{end}{-}\text{length}(u_N)]$

z_dim = (N-2) * (x_dim + u_dim) + u_dim + x_dim

Write the cost function as $J = \tfrac{1}{2} z^T H z$, where $H = \begin{bmatrix} R_1 & 0 & 0 & & 0 \\ 0 & Q_2 & 0 & \cdots & 0 \\ 0 & 0 & R_2 & & 0 \\ & \vdots & & \ddots & \vdots \\ 0 & 0 & 0 & \cdots & Q_N \\ \end{bmatrix}$

# Recall our shorthand for kron
H = blockdiag(sparse(R), I(N-2) ⊗ blockdiag(sparse(Q), sparse(R)), sparse(QN))

297×297 SparseArrays.SparseMatrixCSC{Float64, Int64} with 297 stored entries:
⎡⠑⢄⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⎤
⎢⠀⠀⠑⢄⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⎥
⎢⠀⠀⠀⠀⠑⢄⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⎥
⎢⠀⠀⠀⠀⠀⠀⠑⢄⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⎥
⎢⠀⠀⠀⠀⠀⠀⠀⠀⠑⢄⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⎥
⎢⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠑⢄⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⎥
⎢⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠑⢄⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⎥
⎢⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠑⢄⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⎥
⎢⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠑⢄⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⎥
⎢⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠑⢄⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⎥
⎢⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠑⢄⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⎥
⎢⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠑⢄⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⎥
⎢⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠑⢄⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⎥
⎢⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠑⢄⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⎥
⎢⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠑⢄⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⎥
⎢⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠑⢄⠀⠀⠀⠀⠀⠀⠀⠀⎥
⎢⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠑⢄⠀⠀⠀⠀⠀⠀⎥
⎢⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠑⢄⠀⠀⠀⠀⎥
⎢⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠑⢄⠀⠀⎥
⎣⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠑⢄⎦

Write the dynamics constraint, $Cz = d$, where $C = \begin{bmatrix} B_1 & -I & 0 & 0 & & 0 \\ 0 & A_2 & B_2 & -I & \cdots & 0 \\ \vdots & \vdots & \ddots & \ddots & \ddots & 0 \\ 0 & 0 & \cdots & A_{N-1} & B_{N-1} & -I \end{bmatrix}, \qquad d = \begin{bmatrix} -A_1 x_1 \\ 0 \\ 0 \\ \vdots \\ 0 \end{bmatrix}$

C = I(N-1) ⊗ [B -I(x_dim)]
for k = 1:N-2
    C[(k * x_dim) .+ (1:x_dim), (k * (x_dim + u_dim) - x_dim) .+ (1:x_dim)] = A
end
C

198×297 SparseArrays.SparseMatrixCSC{Float64, Int64} with 690 stored entries:
⎡⠛⢦⣄⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⎤
⎢⠀⠀⠈⠙⢦⣄⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⎥
⎢⠀⠀⠀⠀⠀⠈⠙⢦⣄⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⎥
⎢⠀⠀⠀⠀⠀⠀⠀⠀⠈⠙⢶⣄⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⎥
⎢⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠈⠙⠶⣄⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⎥
⎢⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠈⠙⠶⣄⡀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⎥
⎢⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠈⠙⠶⣄⡀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⎥
⎢⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠈⠙⠶⣄⡀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⎥
⎢⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠙⠶⣄⡀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⎥
⎢⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠈⠙⠳⣄⡀⠀⠀⠀⠀⠀⠀⠀⠀⠀⎥
⎢⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠙⠲⣤⡀⠀⠀⠀⠀⠀⠀⎥
⎢⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠈⠙⠳⣤⡀⠀⠀⠀⎥
⎢⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠙⠲⣤⡀⎥
⎣⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠉⎦

# Check the structure of C
k = 6
(
    C[(k * x_dim) .+ (1:x_dim), (k * (x_dim + u_dim) - x_dim) .+ (1:(2x_dim + u_dim))]
    == [A B -I(x_dim)]
)

true

d = [-A * x1; zeros((N-2) * x_dim)];

198-element Vector{Float64}:
 -1.1
 -1.0
  0.0
  0.0
  0.0
  0.0
  0.0
  0.0
  0.0
  0.0
  ⋮
  0.0
  0.0
  0.0
  0.0
  0.0
  0.0
  0.0
  0.0
  0.0

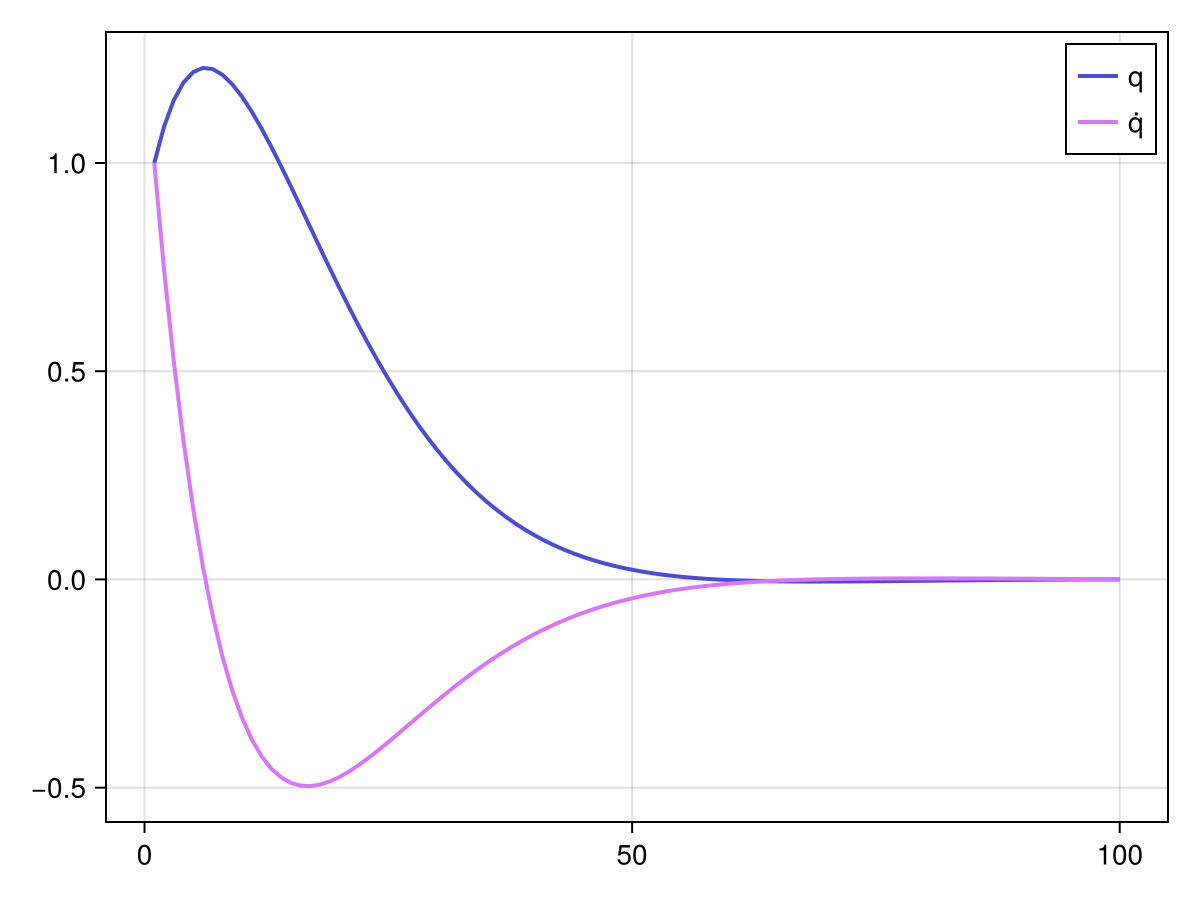

Putting it all together, $\begin{align} \min_z &\quad \tfrac{1}{2} z^T H z \\ \text{s.t.}&\quad C z = d \end{align}$

Lagrangian:

\[L(z, \lambda) = \tfrac{1}{2} z^T H z + \lambda^T (C z - d)\]

KKT conditions:

\[\begin{align} & \nabla_z L = H z + C^T \lambda \overset{!}{=} 0 \\ & \nabla_\lambda L = Cz - d \overset{!}{=} 0 \\ \end{align}\]

Matrix form:

\[\Rightarrow \begin{bmatrix} H & C^T \\ C & 0 \end{bmatrix} \begin{bmatrix} z \\ \lambda \end{bmatrix} = \begin{bmatrix} 0 \\ d \end{bmatrix}\]

Quick check: How many iterations will this take to solve?

P = [H C'; C zeros(size(C, 1), size(C, 1))]

res_qp = P \ [zeros(z_dim); d]

# Extract the minimizer
z_minimizer = res_qp[1:z_dim]

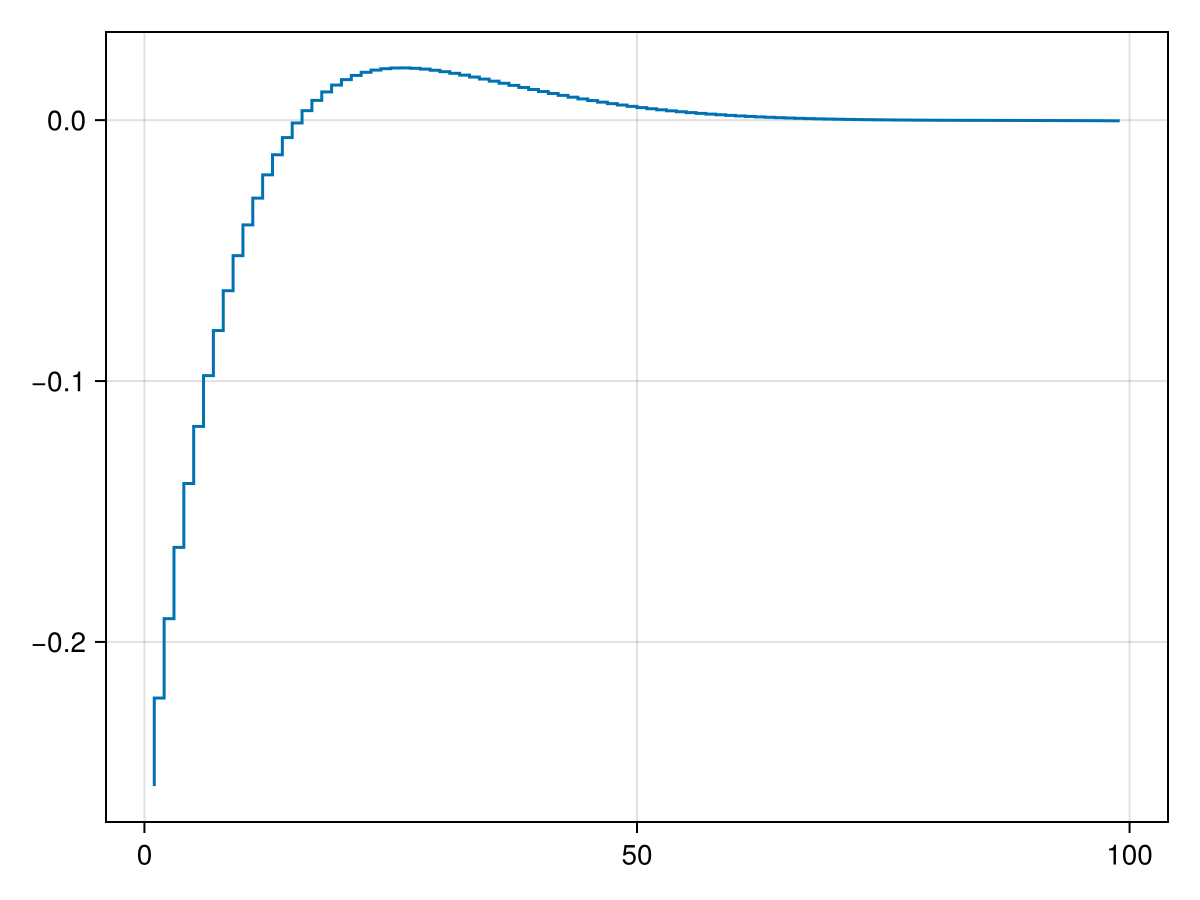

u_minimizer = z_minimizer[1:x_dim + u_dim:end];

99-element Vector{Float64}:
 -0.25526724211741625
 -0.22151609383946136
 -0.1910990418733456
 -0.1637649977921076
 -0.13927451626825543
 -0.11740014001102642
 -0.09792657992806568
 -0.08065075505435546
 -0.06538171417559757
 -0.051940458672337986
  ⋮
 -0.00013339034369839073
 -0.0001425785228803702
 -0.00015260480385746703
 -0.0001637046927068341
 -0.00017610914426376446
 -0.00019004575590729015
 -0.00020573979739887867
 -0.0002234150642871416
 -0.00024329454086428334

fig, ax = series(simulate_dlti(u_minimizer, A, B, x1), labels=["q", "q̇"])
axislegend(ax)
fig

stairs(u_minimizer)

Quick check: What about the temporal structure?
