Symbolic construction

hilb = FockSpace(:cav)
a = Destroy(hilb, :a)

@variables ω κ

cav = SLH("cav", [1], [κ * a], ω * a' * a)

cavSS = QuantumStateSpace(cav)

quadcavSS = toquadrature(cavSS)

QuantumStateSpace{ControlSystemsBase.Continuous, QuadratureBasis}
A =
 -0.4999999999999999(κ^2)       0.9999999999999998ω
     -0.9999999999999998ω  -0.4999999999999999(κ^2)
B =
 -0.9999999999999998κ                   0.0
                  0.0  -0.9999999999999998κ
C =
 0.9999999999999998κ                  0.0
                 0.0  0.9999999999999998κ
D =
 0.9999999999999998                 0.0
                0.0  0.9999999999999998

Continuous-time state-space model

Calculation of coupling rate

T = 0.00001
L = 400; #meters

The round-trip travel time of the cavity is 2L/c. T is the probability of photon leaving the cavity after one round-trip, thus the amplitude coupling rate is

κ_num = T * c.val / (4 * L)

1.8737028625000003

Numeric substitution

paramdict = Dict([ω => 1 * 2π, κ => κ_num])

numcav = substitute(quadcavSS, paramdict)

numeric = toquadrature(numcav)

QuantumStateSpace{ControlSystemsBase.Continuous, QuadratureBasis}
A =
 -1.755381208470347    6.2831853071795845
 -6.2831853071795845  -1.755381208470347
B =
    -1.8737028624999998  0.0 + 0.0im
 0.0 + 0.0im                -1.8737028624999998
C =
     1.8737028624999998  0.0 + 0.0im
 0.0 + 0.0im                 1.8737028624999998
D =
 0.9999999999999998 + 0.0im                 0.0 + 0.0im
                0.0 + 0.0im  0.9999999999999998 + 0.0im

Continuous-time state-space model

Frequency grid

freq_hz = collect(logrange(0.1, 100, 500))
freq = 2π .* freq_hz;

Outputs

G = freqresp(numeric, freq) #this is a ControlSystems call

2×2×500 Array{ComplexF64, 3}:
[:, :, 1] =
 0.851512-0.0445472im  -0.521726+0.0272943im
 0.521726-0.0272943im   0.851512-0.0445472im

[:, :, 2] =
 0.851407-0.0451744im  -0.521822+0.0276871im
 0.521822-0.0276871im   0.851407-0.0451744im

[:, :, 3] =
 0.851299-0.0458107im  -0.521921+0.028086im
 0.521921-0.028086im    0.851299-0.0458107im

;;; …

[:, :, 498] =
    0.999983+0.00574497im  5.90615e-5+3.39313e-7im
 -5.90615e-5-3.39313e-7im    0.999983+0.00574497im

[:, :, 499] =
    0.999984+0.00566598im  5.74486e-5+3.25508e-7im
 -5.74486e-5-3.25508e-7im    0.999984+0.00566598im

[:, :, 500] =
    0.999984+0.00558807im  5.58798e-5+3.12265e-7im
 -5.58798e-5-3.12265e-7im    0.999984+0.00558807im

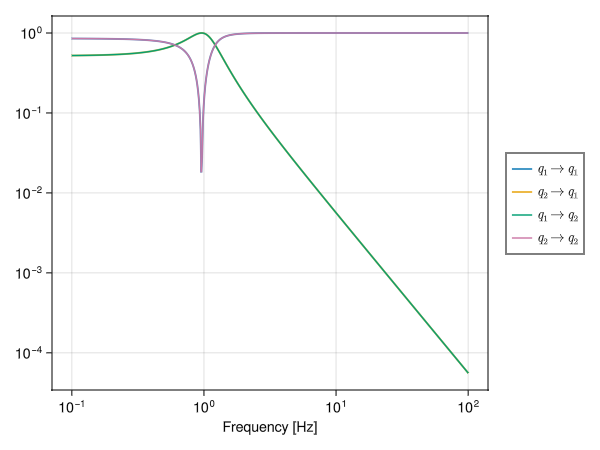

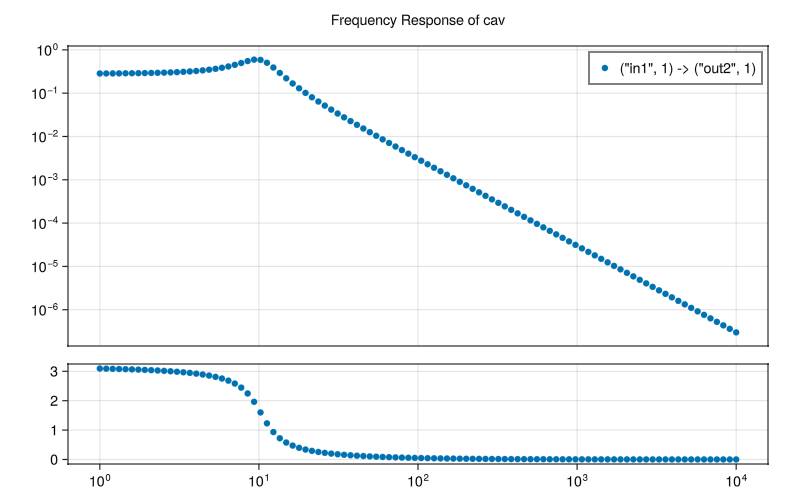

Plotting

fig = Figure()
ax_tf = Axis(
    fig[1, 1];
    xscale = log10, yscale = log10,
    xlabel = "Frequency [Hz]"
)

for ii in 1:2
    for jj in 1:2
        lines!(ax_tf, freq_hz, abs.(G[ii, jj, :]), label = L"q_{%$jj} \rightarrow q_{%$ii}")
    end
end
fig[1, 2] = Legend(fig, ax_tf)

fig
